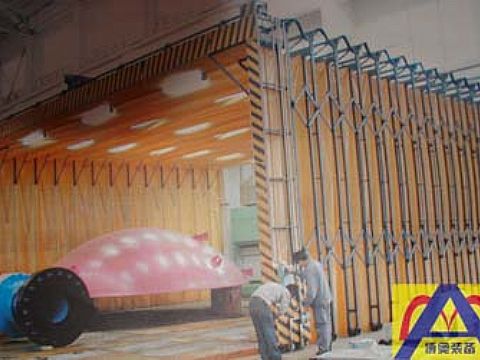

Mobile telescopic spray booth,Mobile spray booth

Description

The mobile telescopic spray booth is a very successful and unique technology developed by the company. It is specially designed to save the comprehensive utilization of the workshop work area and has been successfully applied in aerospace, locomotive, motor, power equipment and machine tools.

Working principle

Before the product is sprayed, the mobile telescopic spray booth controls the button to automatically shrink and close the moving chamber body, let the work site, use the workshop to hoist the product that needs to be painted, and start the control button to automatically open the moving chamber to cover the product, and the operator begins. Spray paint; usually shrinks and closes the moving chamber body when painting is not needed, and the work area is saved, which saves the working area of the workshop; and does not affect the use of the workshop; the mobile telescopic chamber is installed in front of the spray booth to form a closed or semi-closed spray The active device of the work space.

Technical characteristics

1. It is suitable for large and medium-sized workpiece painting or small workpiece concentrated painting; the painting area can be adjusted arbitrarily according to the output size, making full use of the production site and operation space;

2. Suitable for the logistics of heavy workpiece painting, without the need for special transportation tools; the expansion length can be anywhere;

3. The equipment structure is exquisite, easy to use, low manufacturing cost, saving investment; increasingly favored by customers;

4. Optional with a variety of spray paint mist cleaning machine (such as: water curtain, oil shower, no pump, dry); suitable for all types of customer needs;

5. Optional heating air supply system and auxiliary drying device, its unique structure and adaptability make it able to meet the functional requirements of product production;

6. The mobile chamber body adopts light steel fire-retardant structure, and the indoor electrical appliance is explosion-proof, suitable for various environments;

7. The moving chamber body has a high degree of pre-assembly and quick construction on site.
